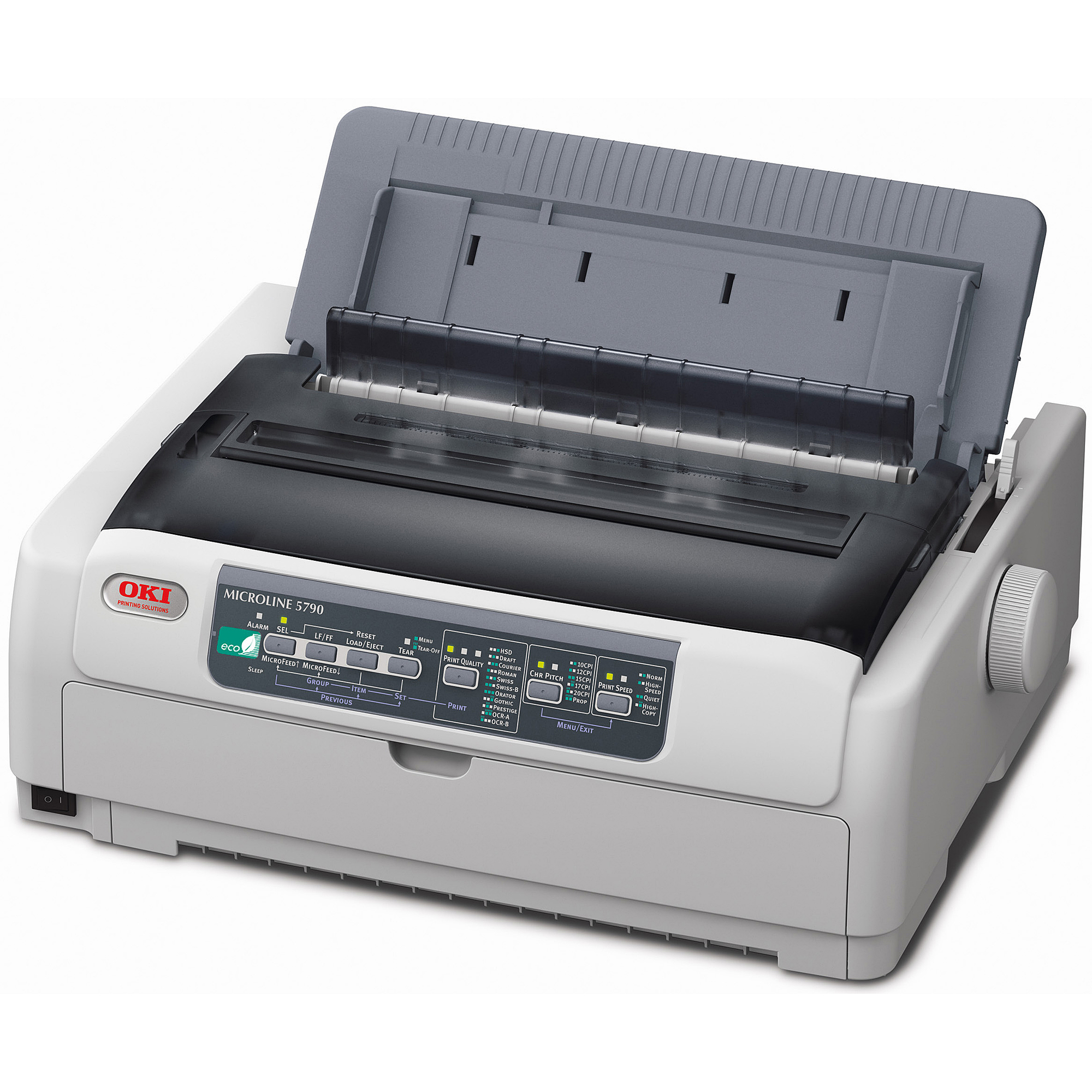

ML 5790 24 PIN

คุณสมบัติสำคัญ

• Print speed(cps):High Speed Draft: 576cps (12cpi), 480cps (10cpi); Draft: 540cps (15cpi), 432cps (12cpi), 360cps (10/20cpi), 309cps (17.1cpi); Letter Quality: 240cps (20cpi), 206cps (17.1cpi), 180cps (15cpi), 144cps (12cpi), 120cps (10cpi)

• จำนวนสำเนาUp to 1 original + 5 copies

คุณสมบัติทั่วไป

Printing Characteristics

• No of pins:24

• Columns:80 (10cpi); 160 (maximum in compression mode)

• ระยะช่องไฟ:5/6/7.5/8.5/10/12/15/17.1/20 pitch and proportional

• รหัส Bar Code:UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2of5, Code128 (A/B/C), CODABAR (NW-7), POSTNET, Industrial 2of5, Matrix 2of5,

Print Speed

• Print speed(cps):High Speed Draft: 576cps (12cpi), 480cps (10cpi); Draft: 540cps (15cpi), 432cps (12cpi), 360cps (10/20cpi), 309cps (17.1cpi); Letter Quality: 240cps (20cpi), 206cps (17.1cpi), 180cps (15cpi), 144cps (12cpi), 120cps (10cpi)

Interface and Software

• ConnectivityIEEE 1284 parallel interface, USB 2.0 (full speed)

Interfaces and Emulations

• ความละเอียดการพิมพ์:Ethernet 10/100, Serial RS232C

• ชุดคำสั่งการพิมพ์Epson LQ ESC/P2, IBM PPR, IBM AGM

• Typeface and Font:HSD, Draft, Courier (scalable), Roman (scalable), Swiss (scalable), Swiss Bold, Orator, Gothic, Prestige, OCR-A, OCR-B

• Typestyle:Emphasised, Enhanced, Double Width, Double Height, Italics, Outline, Shadow, Superscript, Subscript, Underline

• Printer driver:Windows 2000 / XP (32-bit & 64-bit) / Vista (32-bit & 64-bit) / 7 (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) /Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit)

• Utilities:Status monitor, Button setup utility, Menu setup utility, TOF setup utility, Network setup utility, LPR utility

Paper Handling

• Standard:Cut Sheet (single sheet), Continuous Paper (single-part, multi-part), Roll paper, Envelope, Card, Label (cut sheet and fan fold)

• Continuous paper:Width: ML5790eco: 76.2 – 254.0mm / Length: 76.2 – 558.8mm

• First printable line (from top of page):Continuous: 2.12mm; Cut sheet: 0.5mm

• จำนวนสำเนาUp to 1 original + 5 copies

• Multi-part paper thickness:Front/rear push feed: 0.36mm; Front/rear pull feed & front/rear push-pull feed: 0.44mm; Bottom pull feed: 0.48mm

• ระบบป้อนกระดาษมาตราฐาน:Manual insertion: Front or rear in, top out; Push Tractor: Front or rear in, top out; Pull tractor: Front or rear or bottom in, top out

• ขนาดกระดาษต่อเนื่องSingle Bin Cut Sheet Feeder, Push Tractor (front/rear feeds), Pull Tractor (bottom feed), Roll Paper Stand

General Features

• Input buffer128Kbytes

• Power supplySingle phase 220 to 240VAC, +/- 10%

• Power consumption:ISO/IEC 10561 Letter, Roman, Range1: 52W; Sleep mode (no options attached): 1.5W

• Noise levelNormal: 57dB(A); Quiet: 52dB(A); Silent mode: 49dB(A)

• Dimensions(HxWxD)191 x 438 x 375mm

• Weight7.5kg approx

• Warranty1 years

Reliability

• อายุของหัวพิมพ์:400 million characters

• ประสิทธิภาพMTBF: 25,000 hours

EU EMC Directive

• Warning!This product complies with EN55022 Class B. However when fitted with the optional network interface card or optional cut sheet feeder, compliance to EN55022 is Class A. In a domestic environment this configuration may cause radio interference, in which case the user may be required to take adequate control measures.

Key Features

• Description24-pin, 80 column dot matrix printer
